LFP Rechargeable Prismatic Li Ion LiFePO4 Battery Pack 48V 200Ah MSDS

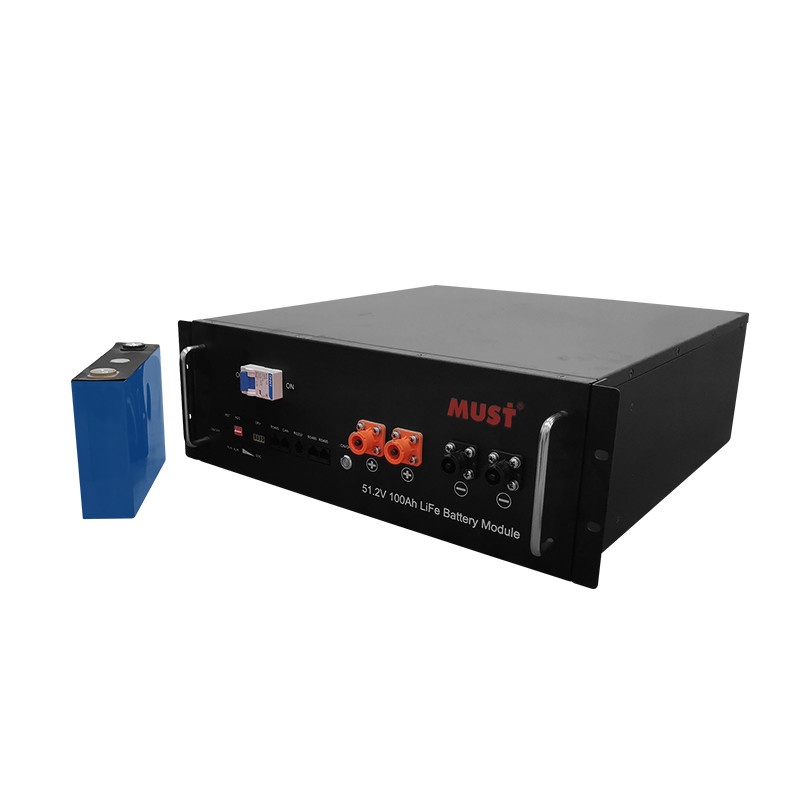

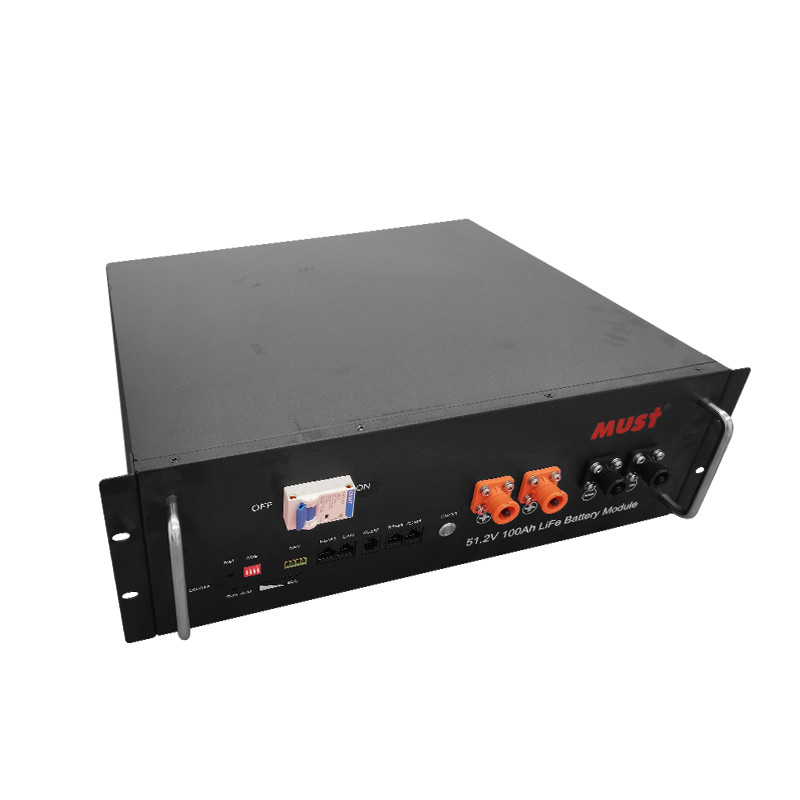

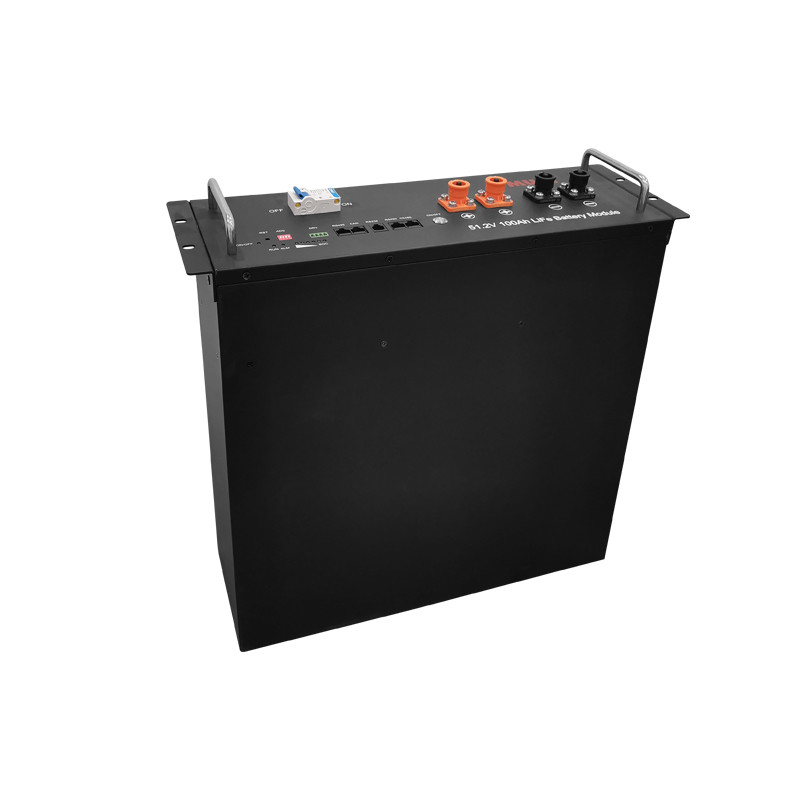

LFP Rechargeable Prismatic Li Ion LiFePO4 Battery Pack 48V 200Ah MSDS LFP Rechargeable Prismatic Li Ion LiFePO4 Battery Pack 48V 200Ah MSDS LFP Rechargeable Prismatic Li Ion LiFePO4 Battery Pack 48V 200Ah MSDS LFP Rechargeable Prismatic Li Ion LiFePO4 Battery Pack 48V 200Ah MSDS
Contact Now

LFP Rechargeable Prismatic Li Ion LiFePO4 Battery Pack 48V 200Ah MSDS

Minimum Order Quantity : 5 Delivery Time : 5-8workdays
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000/month
Certification: CE/MSDS/ROHS/ISO9001/UN38.3

Detail Information
Type: Li-Ion/lithium Warranty: 5years
Size: 482*500*222mm Application: Home Appliances, Electric Power Systems, Solar Energy Story
Cycle Life: 4000 Cycles Weight: 80KG
Voltage: 48 V DOD: 80%
Certification: CE, MSDS Capacity: 200AH
High Light:

MSDS LiFePO4 Battery Pack

,

48V LiFePO4 Battery Pack

,

LFP Rechargeable MSDS lifepo4 li ion battery

Product Description

Rechargeable Power Energy LFP Prismatic LiFePO4 Battery Pack 48V 200Ah lithium ion Lifepo4 Battery
Overview
Quick Details
Warranty:
3years, 3 years
Application:
Solar Energy Storage Systems, Uninterruptible Power Sup, Solar System
Brand Name:
MUST
Certification:
CE, MSDS
Model Number:
LP18-48200
Place of Origin:
Guangdong, China
Weight:
80KG
The charging ratio:
96%
The discharge rate:
80%
Product name:
Lithium Battery 200AH Battery
Type:
Li-Ion/lithium
Capacity:
200AH
Nominal Voltage:
48V
Energy:
10240WH
Size:
482*500*222mm
Efficiency:
>96%
Cycle life:
4000 Cycles
DOD:
80%













Supply Ability
Supply Ability
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
ONE PIECE Lithium Battery M365 Battery IN ONE CARTON
Port
Guangzhou
Lead Time:
Quantity(Pieces) 1 - 50 51 - 500 >500
Est. Time(days) 30 45 To be negotiated




Product Description



LP18-48100 (48V/200Ah)

  • Our battery module consists of multiple cells connected in a series and/or a parallel, encased in a mechanical structure. The system is modular in design, allowing for it to be easily switched to a different capacity and power as per your demands. The unit can be wall mounted, floor mounted, and server rack mounted.



Pictures

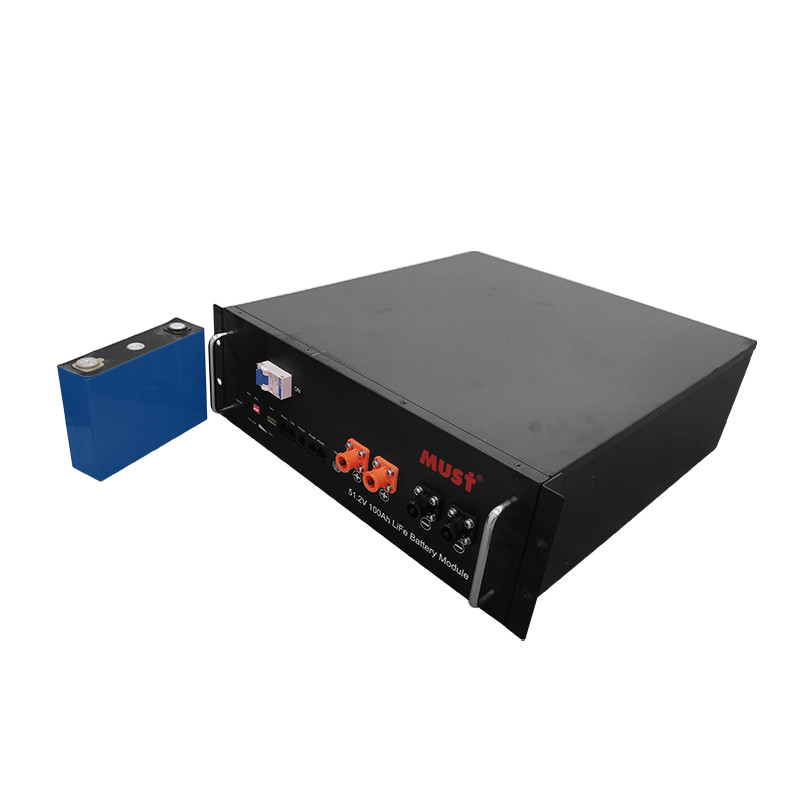

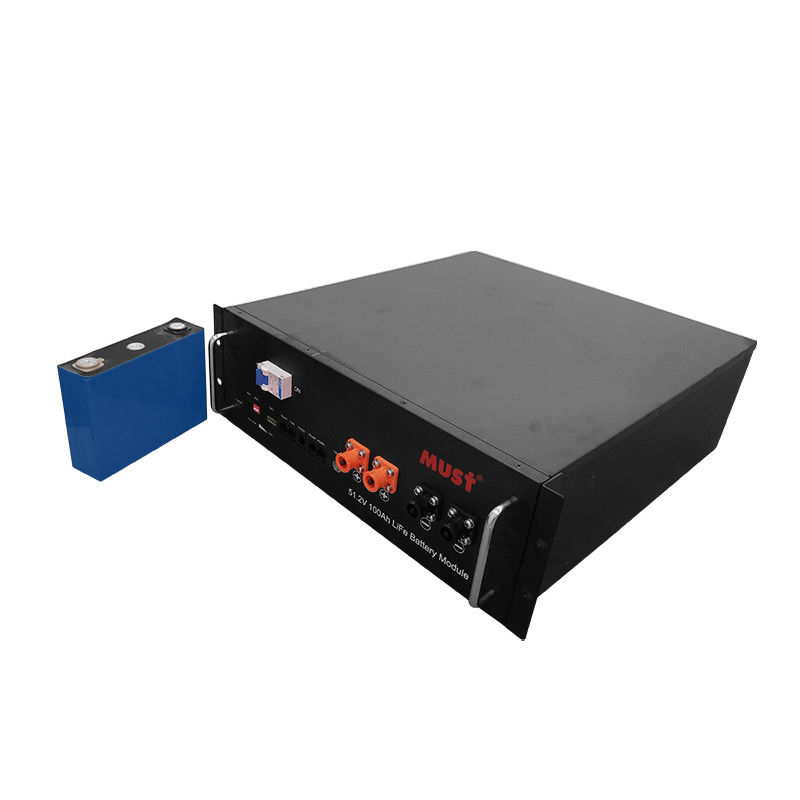

Rechargeable Power Energy LFP Prismatic Solar System Batteries 48V 200Ah lithium ion Lifepo4 Battery

Detailed parameters
ELECTRICAL PERFORMANCE
Nominal Voltage
48V
Nominal Capacity
200AH
Capacity @ 20A
600 min
Energy
10240Wh
Communication
CAN2.0/RS232/RS485
Resistance
≤45 mΩ @ 50% SOC
Efficiency
>96%
Module Parallel Up to 16 packs



CHARGE PERFORMANCE
Recommended Charge Current
20A
Maximum Charge Current
100A
Recommended Charge Voltage
54V
BMS Charge Cut-Off Voltage
<54.7V (3.65V/Cell)
Reconnect Voltage
>54 V (3.6V/Cell)
Balancing Voltage
<54 V (3.6V/Cell)
Maximum Batteries in Series
15(*Consult MUST)



MECHANICAL PERFORMANCE
Dimension (L x W x H)
482*500*222mm
19.0 x 19.7 x 8.7”
Approx. Weight
35.7lbs (80kg)
Terminal Type
DIN POST
Terminal Torque
80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material
SPPC
Enclosure Protection
IP54



DISCHARGE PERFORMANCE
Maximum Continuous Discharge Current
100 A
Peak Discharge Current
110 A (3s)
BMS Discharge Cut-Off Current
150 A (300ms)
Balancing open voltage
51.7V (3.45V/Cell)
Recommended Low Voltage Disconnect
41.2 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage
>30.0V (2s) (2.0V/Cell)
Reconnect Voltage

>37.5 V (2.5V/Cell)
Short Circuit Protection
250 ~ 500 μs



TEMPERATURE PERFORMANCE
Discharge Temperature
-4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature
-4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature
23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off
149 ºF (65 ºC)
Reconnect Temperature
131 ºF (55 ºC)



HEATING FOIL PERFORMANCE
Heating Temperature Range
-4 to 41 ºF (-20 to 5 ºC)
Heating Time
Approximately 1 hour @ 7.5 A
BMS Heating Foil Cut-Off
158 ºF (70 ºC)
Packaging & Shipping

Rechargeable Power Energy LFP Prismatic Solar System Batteries 48V 200Ah lithium ion Lifepo4 Battery



Rechargeable Power Energy LFP Prismatic Solar System Batteries 48V 200Ah lithium ion Lifepo4 Battery
