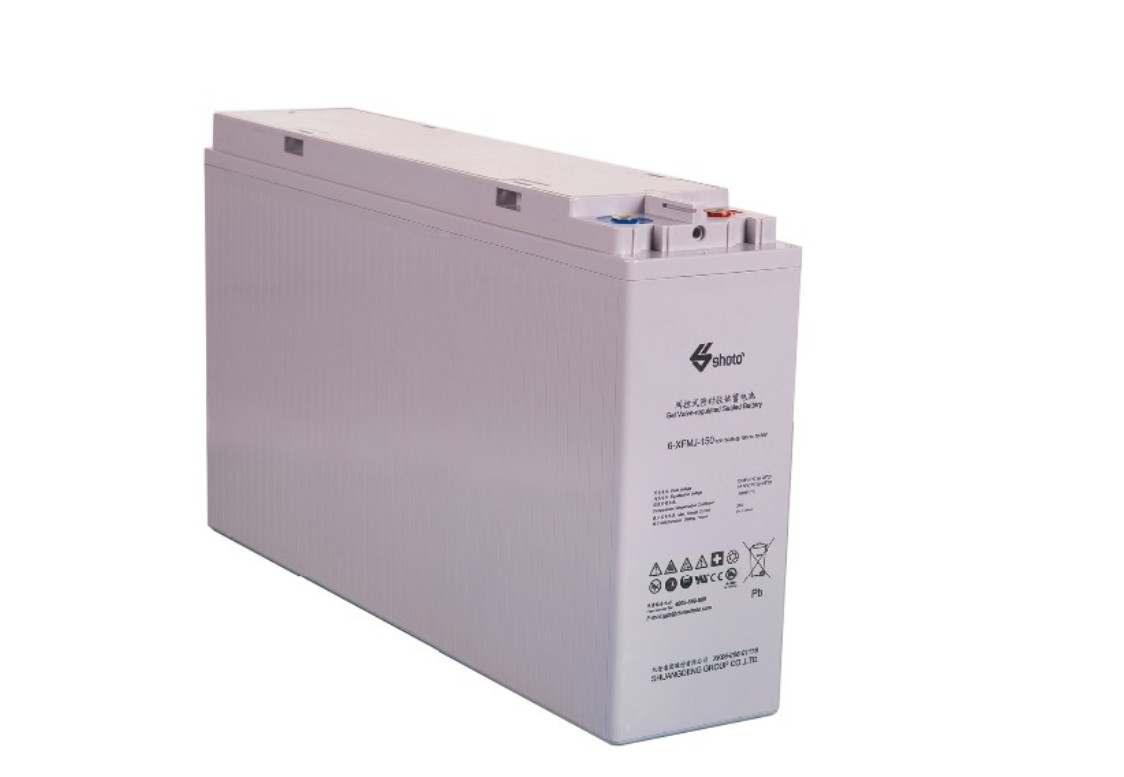

M6 Front Terminal Gel Battery 150Ah 12v Deep Cycle Gel Battery For Energy Storage

Name: M6 Front Terminal Gel Battery 150Ah 12v Deep Cycle Gel Battery For Energy Storage
Brand: SHOTO
SKU: 6-XFMJ-150
Price: 286 USD
Availability: InStock
Rating: 4.7 (193 reviews)

Minimum Order Quantity :	1PCS	Price :	$286/pcs

Brand Name:	SHOTO	Model Number:	6-XFMJ-150

Detail Information
Model Number:	6-XFMJ-150	Nominal Capacity:	150Ah
Weight:	56kg	Size:	550125310/310mm
Voltage:	12V	Application:	Telecom / Energy Storage / UPS
Color:	Grey	Product Name:	12V 150AH Lead Acid Battery
Terminal:	M6
High Light:	M6 Front Terminal Gel Battery , UPS M6 150Ah Front Terminal Gel Battery , M6 150Ah 12v deep cycle gel battery

Product Description

Shoto 6 - XFMJ - 150 VRLA Maintenance - free OpzV Gel Front Terminal Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		56.0 kg (123.5 lbs)
Dimensions		Length: 550 mm Width: 125 mm Height: 310 mm Total height: 220 mm
Internal Resistance (full charged)		4.7 mΩ
Short-circuit Current		2553A
Self Discharge @25˚C(77˚F)		Less than 4% after 28 days storage
Operating Temperature Range		Discharge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Charge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Storage: 5˚C ～ 40˚C(41˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		22.5 A
Charging Voltage @25˚C(77˚F)		Float: 2.25 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		105 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		15 years

Main Applications

1. Floating applications for telecom sites
2. Solar & wind energy storage system
3. O-grid & Bad-grid hybrid sites
4. UPS and emergency lighting

Benefits

1. Long life design for oat application, 15years
2. Excellent charge acceptability and deep cycling performance
3. Suitable for 19inch/23 inch cabinet, reduce the occupied area
4. High performance/ price ratio and low annual operating cost

Technical Features

1. Special gel electrolyte without owing to avoid acid stratication and can prolong service life

2. Front-access terminal connections for fast and easy installation and maintenance
3. Excellent discharging ability in low current

4. High stability and security, millions of batteries are in service

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
