Prismatic 3.2 V 280ah Lifepo4 Battery 1C LiFePO4 Lithium Battery For Electric Scooter
Prismatic 3.2 V 280ah Lifepo4 Battery 1C LiFePO4 Lithium Battery For Electric Scooter
Contact Now

Prismatic 3.2 V 280ah Lifepo4 Battery 1C LiFePO4 Lithium Battery For Electric Scooter

Minimum Order Quantity : 50 Delivery Time : 5-8workdays
Payment Terms : L/C, T/T
Brand Name: EVE Model Number: LF280

Detail Information
Model: 3.2v LiFePO4 280Ah Nominal Voltage: 3.2v
Max Charge Voltage: 3.65v Charging Temperature: -5-60℃
Weight: 5.22kg Real Capacity: 280Ah
Maximum Discharge Current: 280A AC Impedance Resistance: <0.25m
Dicharging Temperature: -30-60℃ Dimensions(L*W*H): 172*72*200mm
High Light:

1C LiFePO4 Lithium Battery

,

280ah LiFePO4 Lithium Battery

,

1C 3.2 v 280ah lifepo4 battery

Product Description

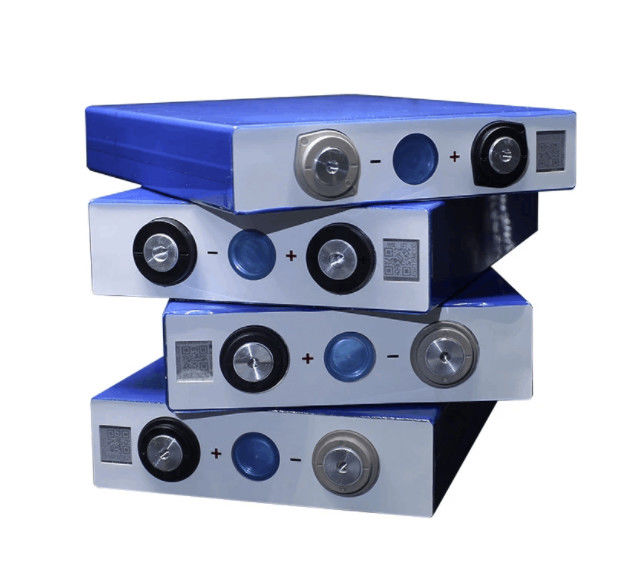

Lifepo4 Prismatic battery LF280

PRODUCT SPECIFICATIONS
Item
Data information
Model
EV 3.2V 280Ah Lifepo4 Prismatic Battery
Real Capacity
310Ah
Nominal Voltage
3.2v
Max Discharge Current
1C/ 310A
Max Charge Voltage
3.65v
AC Impedance Resistance
≤0.25mΩ
Charging Temperature
-5-60℃
Discharging Temperature
-30-60℃
Cycle Life
≥ 4000 times
Weight
5.3kg
Dimensions (L*W*H)
202*172*72mm
Applications
Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.
Note:
1.This item is EV 3.2V 280Ah Lifepo4 Prismatic Battery. 100% authentic A grade Lifepo4 Battery. New Brand with Factory QR on it.

2.The price come with Bus bars and Bolts. One battery will come with one set bus bar and bolt.(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!

3.The busbars size:90*20*2mm(cooper plated with nickel) Screw size:M6

4.We will test all the battery Voltage ,Internal resistance and capacity before delivery

5.Docan is the direct distributor of EVE, CATL, LISHEN, CALB, REPT, Yinglong batteries. Fresh Stock for them ready to ship. Please feel free to contact us if any need to them.


Lifepo4 Prismatic battery LF280


●Intelligent factory design, high performance consistency;

●Square aluminum shell structure, and high-precision explosion-proof valve, high safety performance;

●Low internal resistance, high discharge rate and stable discharge platform;

●Design and customize according to customer requirements;

●Long cycle life, the capacity retention ratio exceeds 80% after 3500 cycle at 1C/1C;

●Green, the product conforms to GB, UN and ROHS directive.

(Note: the above data are from EVE's laboratory)
