Home ProductsLiFePO4 Lithium BatteryLifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike
Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike
Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike
Contact Now

Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike

Minimum Order Quantity : 50 Delivery Time : 5-8workdays
Payment Terms : L/C, T/T
Brand Name: EVE Model Number: LF90

Detail Information
Model: 3.2v LiFePO4 90Ah Max Charge Voltage: 3.65v
Weight: 2KG Maximum Discharge Current: 90Ah
Dicharging Temperature: -30-60℃ Type: LiFePo4
Application: Flashlight, Electric Bike / E-scooter, Solar System, E Car, Solar System/RV/yacht/golf Carts Storage And Car/UPS Nominal Voltage: 3.2V
Warranty: 3 Years
High Light:

LF90 90Ah Lifepo4 LFP Prismatic Cells

,

3C 3.2V 90Ah LFP Prismatic Cells

,

LF90 Lithium Phosphate Battery For Ebike

Product Description

Lifepo4 lithium battery LF90 lifepo4 lithium ion battery prismatic lithium battery
Quick Details
Warranty:
Other
Application:
Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size:
130.3*36.7*200mm
Brand Name:
EVE Battery
Certification:
RoHS/CE
Model Number:
LF90
Place of Origin:
Guangdong, China
Weight:
1980±30g, 1980±30g
Nominal Capacity:
90Ah
Nominal Voltage:
3.2V
Working voltage:
2.5V~3.65V
AC impedance resistance:
≤0.6mΩ
Standard charge/discharge Current:
0.5C/0.5C
Cut off voltage of charge/discharge:
3.65V/2.5V
Max charge/discharge current:
3C
Cycle life:
4000 Cycles
Battery type:
Lifepo4 Battery Cell
Supply Ability
Supply Ability
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Original custom carton boxes
Port
Shenzhen
Picture Example:

Lead Time:
Quantity(Pieces) 1 - 20 21 - 500 >500
Est. Time(days) 7 15 To be negotiated

Product Description
Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike 0

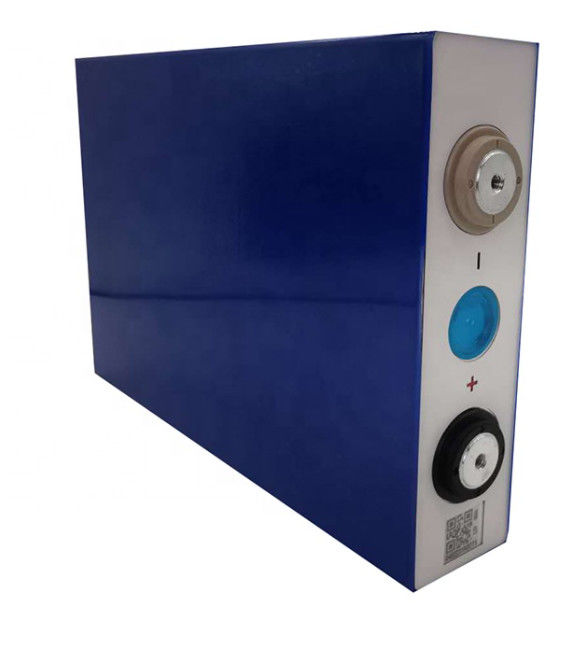

3.2V 90AH EVE LF90K LiFePO4 Battery Cell


We provide 90Ah LiFePO4 Batteries from EVE,they are high capacity 3.2V power lithium-ion batteries for RV/solar system/yacht/golf cart and storage and car.LF50K LiFePO4 batteries have a high capacity with excellent performance, long cycle life, and high safety factor.

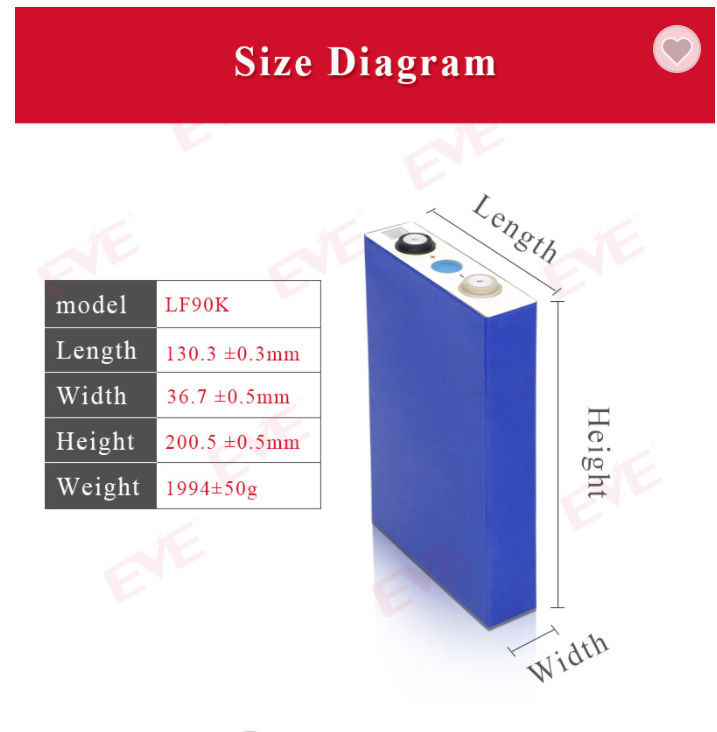

The weight of LF50K LiFePO4 batteries is around1.98kg and the dimension is 130mm*36.7mm*200.5mm.


Specification
Nominal capacity
90Ah
Nominal Voltage
3.2V
Internal Impedance @ 1KHz AC
≤0.6mΩ
Working voltage
2.5V~3.65V
SOC of shipment
30%~40%SOC

Standard charge/discharge
Charge/Discharge current
0.5C/0.5C
Cut off voltage of charge/discharge
3.65V/2.5V

Max charge- current
Continuous charge
3C
Pulse charge (30s)
5C

Max discharge- current
Continuous discharge
3C
Pulse discharge (30s)
5C
Recommend SOC window
10%～90%SOC
Charging temperature
0℃～55℃
Discharging temperature
-20℃～55℃

Storage temperature
One month
-20℃～45℃
One year
0℃～35℃
Self-discharge rate
≤3﹪/month
Weight
1980±30g
Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike 1
Lifepo4 LFP Prismatic Cells 90Ah 3.2V 3C LF90 Lithium Phosphate Battery For Ebike 2



LFP battery——Aluminum shell



●Intelligent factory design, high performance consistency;

●Square aluminum shell structure, and high-precision explosion-proof valve, high safety performance;

●Low internal resistance, high discharge rate and stable discharge platform;

●Design and customize according to customer requirements;

●Long cycle life, the capacity retention ratio exceeds 80% after 3500 cycle at 1C/1C;

●Green, the product conforms to GB, UN and ROHS directive.

(Note: the above data are from EVE's laboratory)
